Farewell to Water and Oil Risks | AirHorse Laser Cutting Dedicated Screw Air Compressor Solution for the Glass Manufacturing Industry
In glass laser cutting production, many companies often focus primarily on the laser machine itself, while overlooking the critical impact of compressed air quality on equipment stability and production costs. Excessive moisture content in compressed air, which allows condensate to enter the laser system, triggers a chain of issues: reduced cutting stability, decreased optical path efficiency, increased rework and scrap rates, and significantly shortened lifespan of core components like laser lenses.
Damage to key components such as the laser head or lenses can lead to single replacement or repair costs often reaching tens of thousands, alongside indirect losses from downtime and delayed deliveries. Therefore, for laser cutting enterprises, "dehydration capability" is not an optional feature, but a core competency that must be guaranteed.

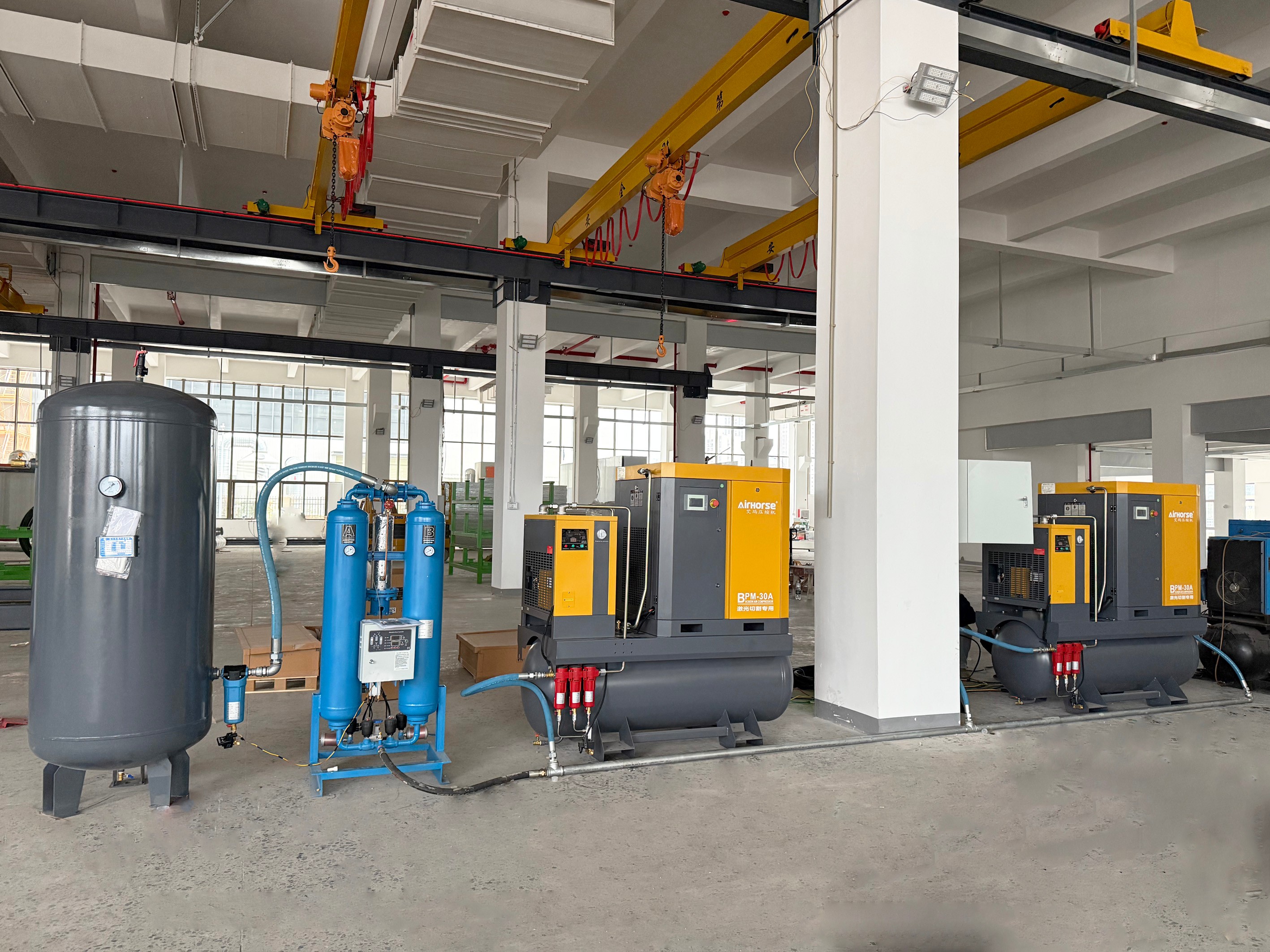

Hangzhou glass technology company, with stringent demands for equipment stability and product quality, is a prime example. To meet the rigorous compressed air requirements of laser cutting, AirHorse configured two 22kW Four-in-One Permanent Magnet Variable Speed Screw Air Compressors dedicated for laser cutting (with an adsorption air dryer system). This solution controls moisture generation at the source and incorporates multi-stage deep treatment, ensuring the compressed air supplied to the laser system remains consistently stable, clean, and dry.
Stable Air Supply, Reliable Foundation
Laser cutting operations exhibit significant air consumption fluctuations, with varying air flow and pressure demands during cutting, piercing, and idle periods. Traditional fixed-speed compressors, limited to "full-load output + frequent start-stop cycles," cause substantial pressure swings and promote condensate formation during these fluctuations.
AirHorse 22kW dedicated compressor utilizes a Permanent Magnet Synchronous Motor and Variable Speed Drive control system. It automatically adjusts speed based on the laser equipment's real-time air demand, enabling continuous, linear air output and eliminating drastic pressure variations. This ensures cutting process stability while providing more consistent operating conditions for downstream air dryer and filtration systems, reducing potential moisture generation and separation from the outset, and establishing a stable foundation for the laser cutting system.
Precision Filtration + Adsorption Air Dryer for Deep Dehydration
In laser cutting, whether compressed air is "dry" is often more critical than whether it's "sufficient." Ingress of condensate or vapor can cause unstable cutting at minimum, and lead to direct damage of the laser head, lenses, and pneumatic valves at worst, incurring high maintenance and downtime costs.
Addressing this core challenge, the AirHorse system incorporates a four-stage precision filtration system to progressively remove liquid water, oil aerosols, and micron-level particulates. This is complemented by an adsorption air dryer for deep dehydration, significantly lowering the compressed air dew point.
The combined "Multi-stage Filtration + Adsorption Air Dryer" approach ensures reliable performance not only during standard continuous operation but also maintains stable dehydration capability under high-temperature, high-humidity conditions. This fundamentally minimizes the risk of condensate entering the laser system, delivering a truly safe and dependable long-term air source for laser equipment.
Integrated Structure Mitigates Secondary Risks
In practical applications, many enterprises experience "qualified air at the compressor, but moisture ingress before the laser machine," even with air dryer and filters installed. This is often due to lengthy pipelines and significant temperature differentials causing secondary condensation.
The AirHorse Four-in-One integrated design combines the compressor, air dryer, filtration system, and air tank into a compact unit. This drastically shortens the path from air generation to point-of-use, reducing temperature variation and condensation risks associated with extended piping. The integrated unit also simplifies system structure, enhances operational stability, and eliminates management and maintenance complexities inherent in multi-component setups.
Post-implementation feedback from the customer confirms significant improvements: enhanced laser cutting system stability, substantial reduction in unplanned downtime, lower rework and scrap rates, decreased maintenance frequency for laser heads and optical components, a more manageable air system, and better overall cost control. What appears as a simple "dehydration" upgrade effectively shields the enterprise from prolonged and costly hidden losses.
In laser cutting production, the true differentiator often lies not in the equipment specifications themselves, but in the fundamental, frequently overlooked safeguards that consistently impact productivity. The stability and dryness of compressed air, while seemingly a back-end concern, directly correlates with laser head longevity, cut quality, and the enterprise's genuine operational costs.
AirHorse Laser Cutting Dedicated Four-in-One Permanent Magnet Variable Speed Screw Air Compressor, with its deep dehydration solution combining four-stage precision filtration and adsorption air dryer, controls risks proactively at the source. It transforms compressed air into a truly stable, reliable, and sustainable production safeguard for the laser processing workflow.
